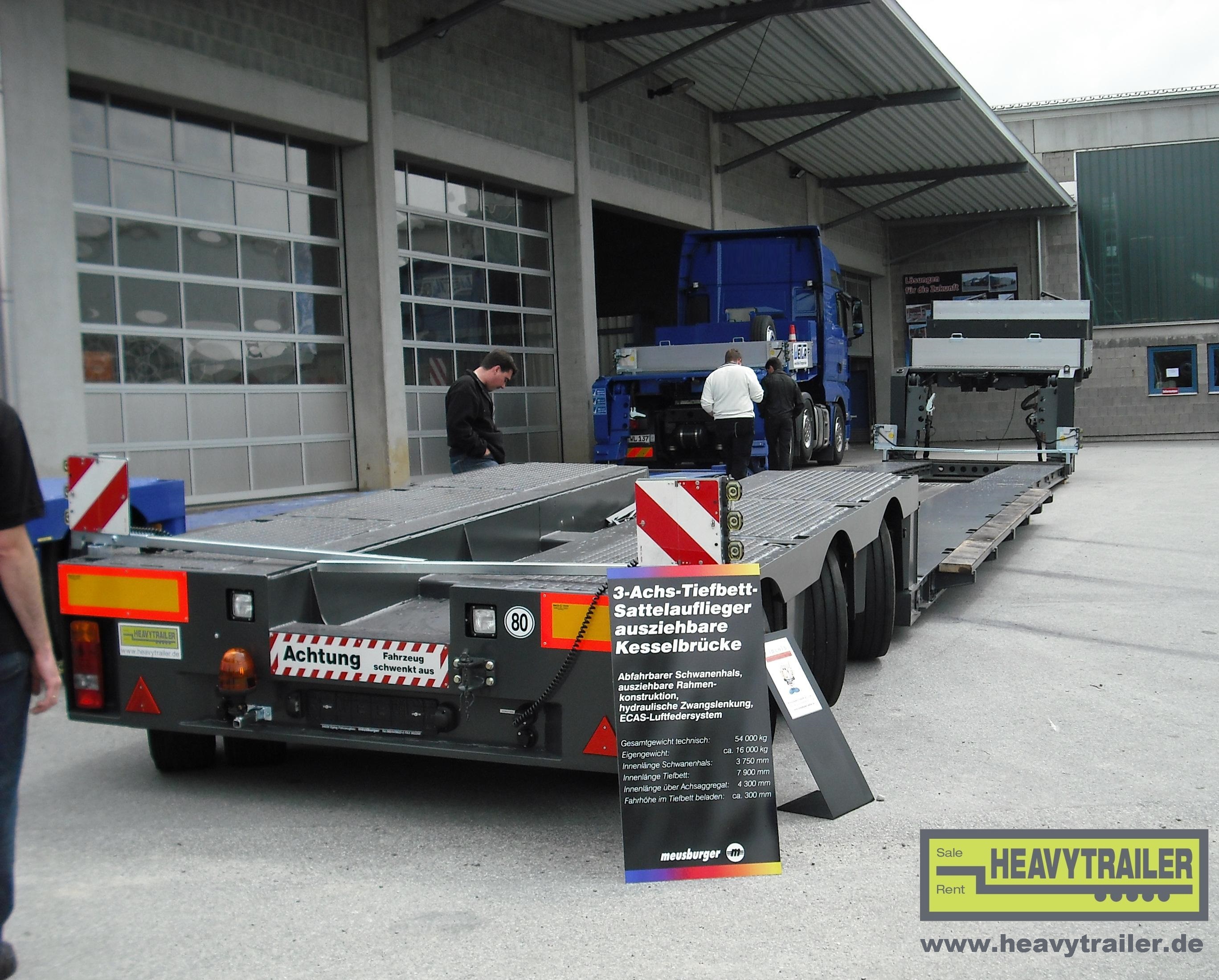

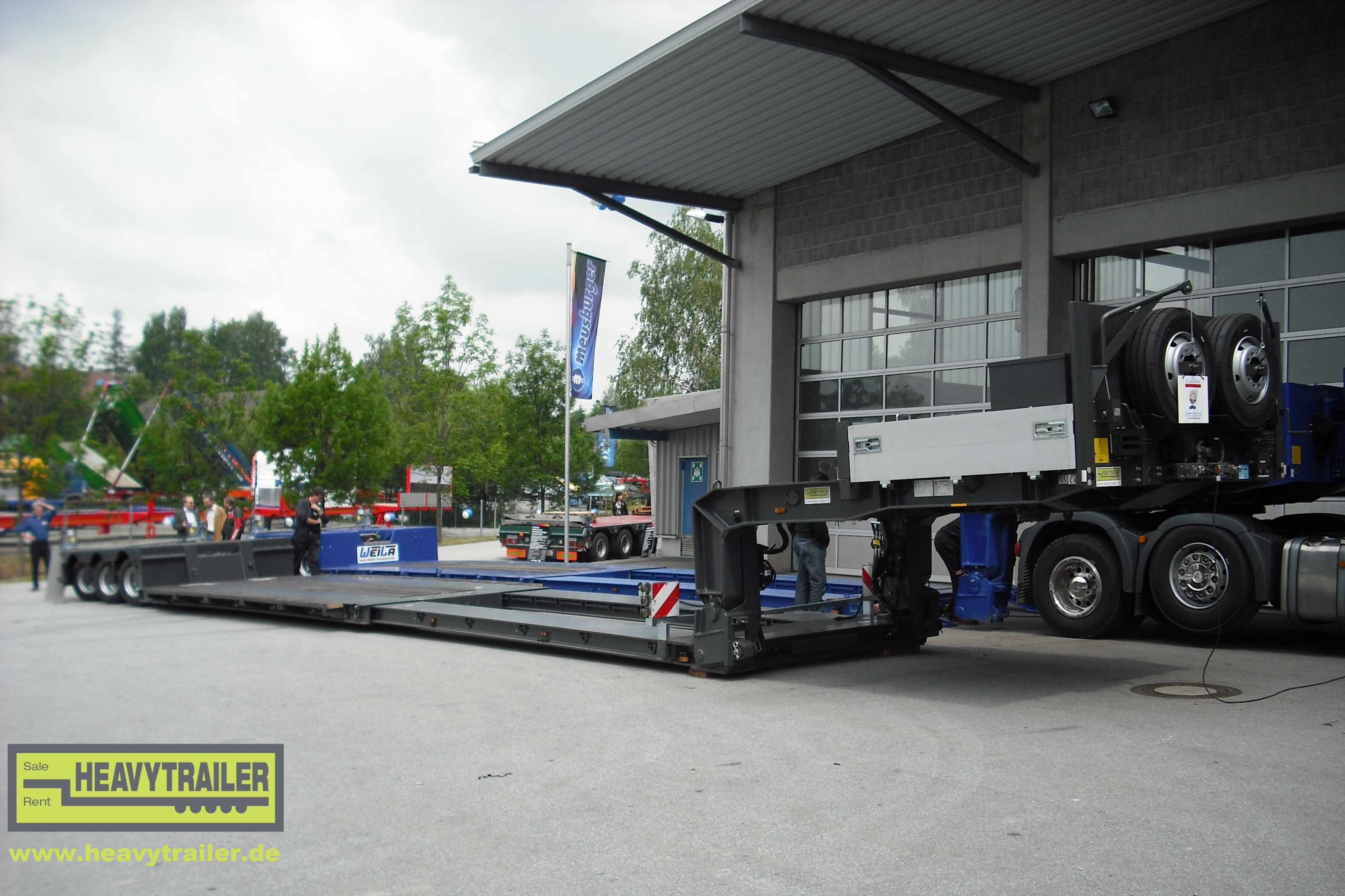

Meusburger 3-axle-low-deck-trailer

Meusburger 3-axle-low-deck-trailer with detacheable gooseneck Specifications
Total weight ca. 54.000 kg
Payload 80km/h ca. 37.000 kg
Empty load ca. 17.000 kg
telescopiec / extendable ca. 5.400 mm
Gooseneck length ca. 3.750 mm
Vehicle width ca. 2550 mm
Coupling height ca. 1.250 mm
Loading height ca. 300 mm
Loading length ca. 7.900 mm
Manufacturer Meusburger
Type low deck trailer
Axles 3
Steering Forced steering
  • Meusburger 3-axle-low-deck-trailer
  • Meusburger 3-axle-low-deck-trailer
  • Meusburger 3-axle-low-deck-trailer

rent- or sales price on demand by contact person:

Olga Dunker

00 49 (0) 231 72 08 40 -12

olga.dunker@heavytrailer.de

Ralf Meissner

00 49 (0) 231 72 08 40 - 13

ralf.meissner@heavytrailer.de

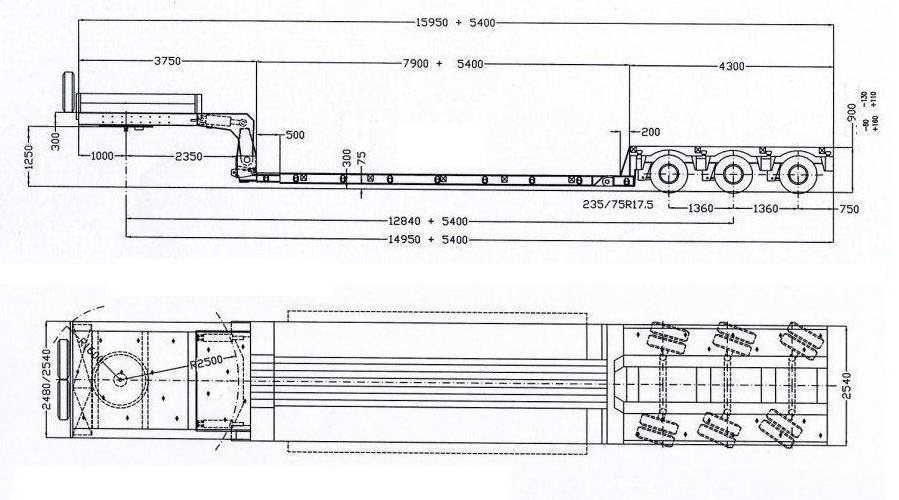

Technical drawing

Technische Zeichnung

Frame:

  • welded steel frame with front and rear in chamfered design
  • low deck in double telescopic design
  • continuous excavator recess at the bogie plateau

Axles:

  • 3 x 10.000 kg BPW axles. All axles steered hydraulically by fifth wheel
  • ECAS air suspension system with lifting and lowering function (total stroke 260 mm).
  • second additional driving positions (+50 / +100 mm) about ECAS program
  • 14 tyres (235/75 R 17.5). brand: Michelin XTA

Brake system:

  • EBS braking system (WABCO 4S2M)
  • spring controlled parking brake

Floor:

  • 50 mm hardwood floor, about 5 mm above the frame

Gooseneck:

  • hydraulically height-adjustable and removeable gooseneck
  • separate air support at the gooseneck inkl. air gun
  • middle bridge on the gooseneck with foldable ramps (1.000 mm)

Illumination:

  • 24 Volt ISO
  • 2 x 7 pin sockets
  • 15 pin socket
  • 2 x 5 chamber rear lights
  • ECE warning plates
  • LED side lights
  • 3-pin socket at rear
  • working light

Additional equipment:

  • steering by cable and radio remote control
  • bulkhead in screwed design, approximately 1.000 mm high (25 mm aluminum hollow profiles)
  • pluggable aluminum rear panel, 400 mm high
  • pluggable aluminum side panels , 2.000 mm x 400 mm
  • 2 pieces of spare wheel holder at the bulkhead
  • 2 pairs of recessed lashing rings on the plateau (ca. 4 to)
  • 5 pairs of lashing rings at the inside frame of the tank bridge
  • 7 pairs of lashing rings at the outer frame of the tank bridge
  • 4 pairs of heavy duty lashing rings (ca. 8 tons) outside at the chassis
  • 5 pairs of side post bags at the low deck
  • 4 pairs of site post bags at the bogie chassis
  • 4 pieces of wheel chocks
  • 2 ECE-warning plates
  • 2 pairs of extendable warning plates with 3 pieces of position lights and holder for warning light
  • additional warning plates for Belgium
  • steel tool box on plateau
  • km-counter (odometer) at the left axis
  • central lubrication system (Lincoln)
  • "swing" extensions to 3.000 mm overall width
