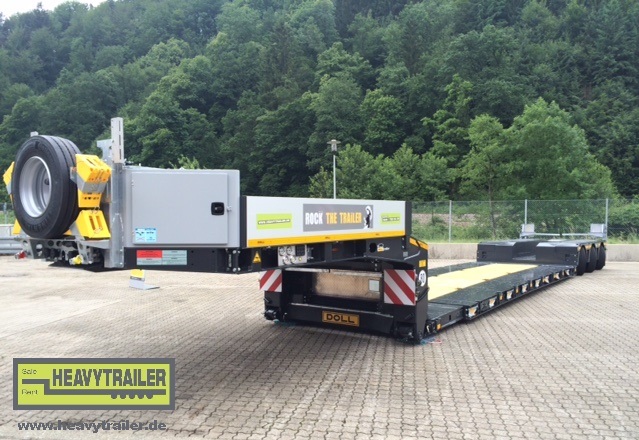

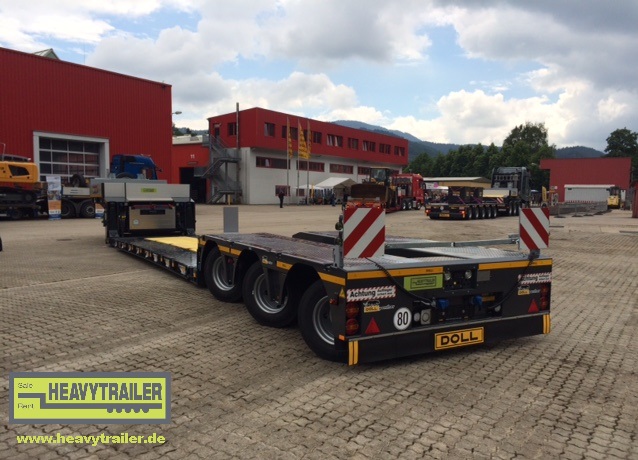

Doll 3-axle-low-deck-trailer with Panther-axles

Doll 3-axle-low-deck-trailer with Panther-axles Specifications
Total weight ca. 61.000 kg
Payload 80km/h ca. 45.000 kg
Empty load ca. 16.000 kg
telescopiec / extendable ca. 5.500 mm
Gooseneck length ca. 2.800 mm
Vehicle width ca. 2.550 mm
Coupling height ca. 1.200 mm
Loading height ca. 300 mm
Loading length ca. 7.500 mm
Manufacturer Doll
Type low deck trailer
Axles 3
Steering Forced steering
  • Doll 3-axle-low-deck-trailer with Panther-axles
  • Doll 3-axle-low-deck-trailer with Panther-axles
  • Doll 3-axle-low-deck-trailer with Panther-axles

rent- or sales price on demand by contact person:

Olga Dunker

00 49 (0) 231 72 08 40 -12

olga.dunker@heavytrailer.de

Ralf Meissner

00 49 (0) 231 72 08 40 - 13

ralf.meissner@heavytrailer.de

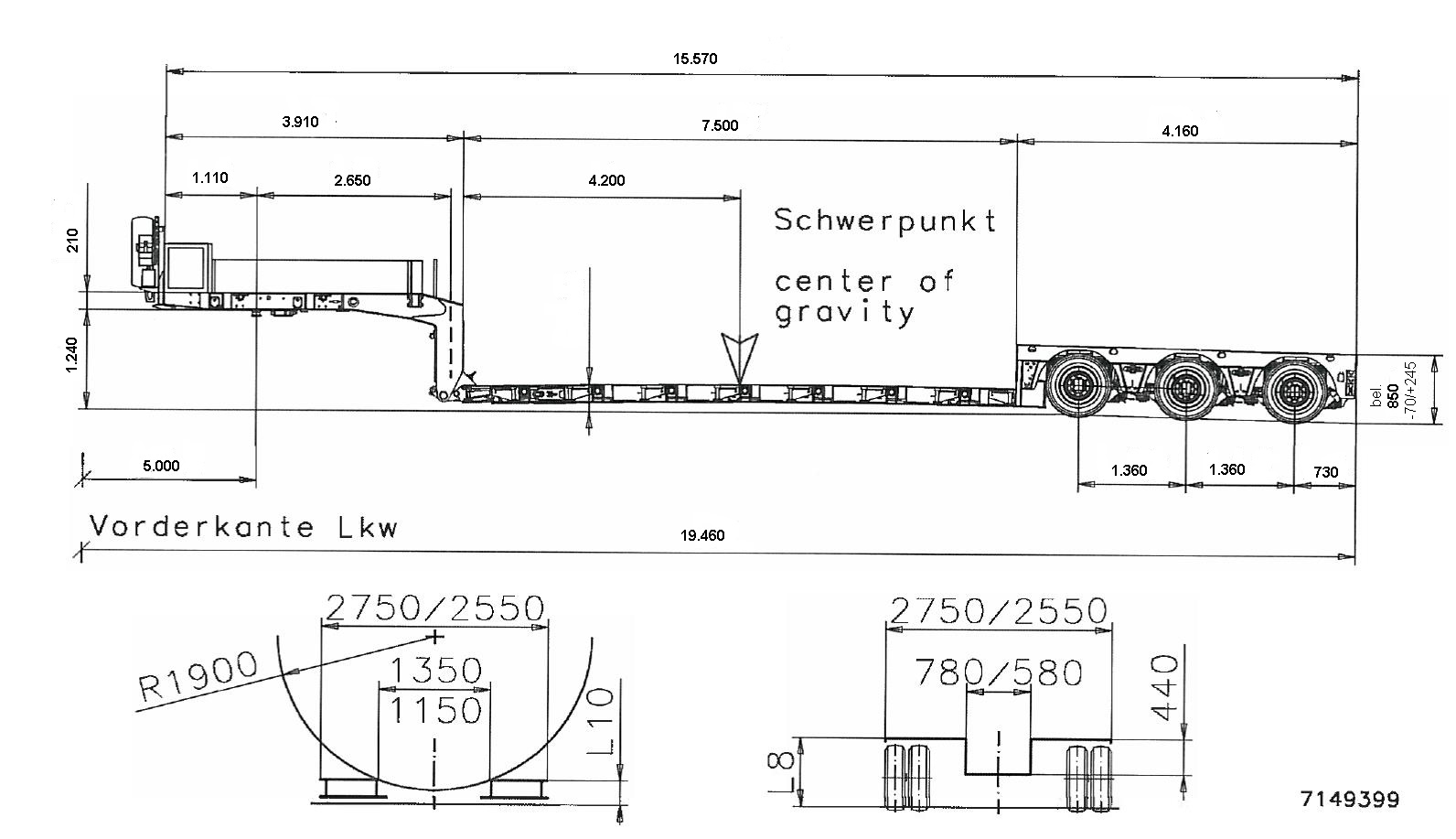

Technical drawing

Technische Zeichnung

Gooseneck (detachable):

  • hydraulic removable and height adjustable by electronic hydraulic pump

Chassis:

  • steel welded frame construction
  • telescopic frame (length ca 5.500 mm)
  • lockings each 500 mm (pneumatic)

Axles and spring suspension:

  • Doll panther-technology
  • BPW-axles
  • axles (12 to), with ABS and AGS
  • hydraulic suspension
  • hub complete 312 mm (-70/245 mm)
  • lifting axles 1 and 3 axle

Tyres:

  • tyres: 245/70 R 17,5
  • twin tyres
  • spare-wheel
  • steel wheel rims

Illumination (24 Volt/ Hella):

  • 2 pairs of 3-chamber rear lights (consisting of rear light, brake light, turn signal lamp, fog lamp, back-up light)
  • 2 pieces of LED- corner marker lights
  • 2 pieces of  LED- license plate lights
  • LED- sidemarker lights at the telescopic frame

Socket outlets:

  • 15-pin
  • 1-pin socket at the rear for warning light
  • ABS-/EBS
  • 10-pin for steering



Additional equipment:

  • forced steering system - hydraulic
  • central lubrication System with 2 pumps for steering, axles and gooseneck
  • steel-bulkhead (bulkhead designed as tool box on the gooseneck)
  • removeable aluminum drop-sides (height ca. 400 mm)
  • 1 pair of steel ramps (1.000 mm)
  • telescopic frame (length ca. 5.500 mm)
  • foldable extensions at both sides of the low deck (for 3.000 mm groƟ wide)
  • 4 pairs of warning plates
  • 4 pieces of wheel chocks
  • 2 pieces ECE warning plates
  • holder for warning light
  • paintwork "nova grey"
