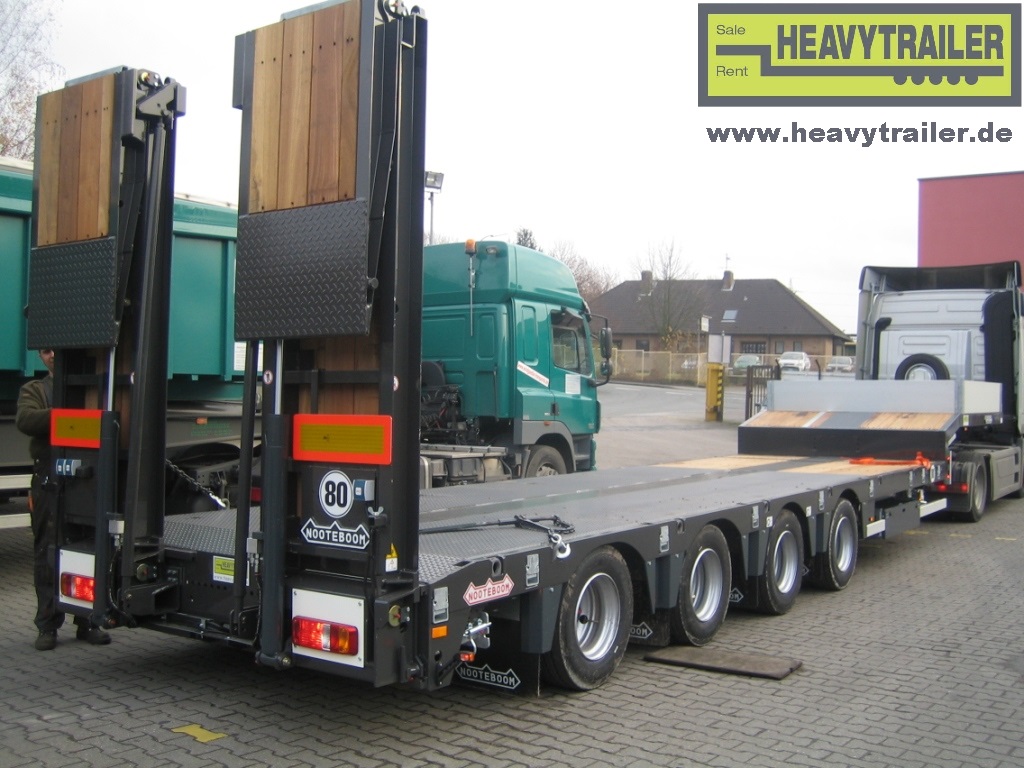

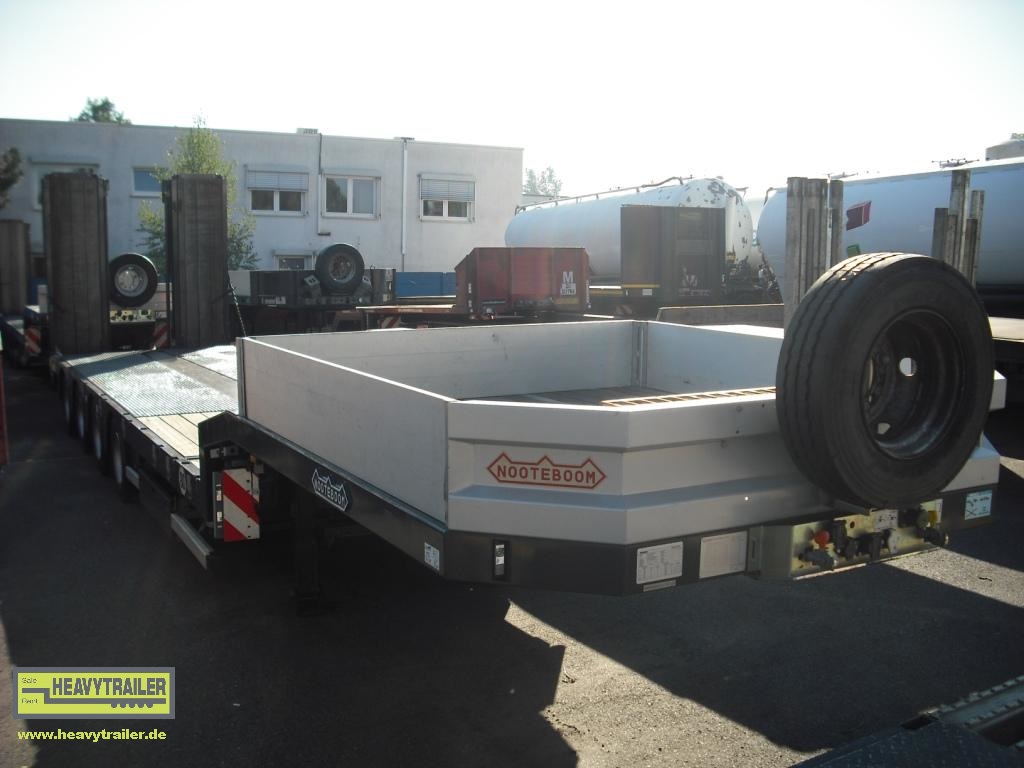

Nooteboom OSDS-58-04V(EB) (4-axle-semi-trailer with hydraulic ramps)

Nooteboom OSDS-58-04V(EB) (4-axle-semi-trailer with hydraulic ramps), telescopic Specifications
Total weight ca. 58.000 kg
Payload 80km/h ca. 46.000 kg
Empty load ca. 12.000 kg
telescopiec / extendable ca. 6.800 mm
Gooseneck length ca. 3.800 mm
Vehicle width ca. 2.520 mm
Coupling height ca. 1.250 mm
Loading height ca. 860 mm
Loading length ca. 9.000 mm
Manufacturer Nooteboom
Type semi trailer
Axles 4
Steering Self steering
  • Nooteboom OSDS-58-04V(EB) (4-axle-semi-trailer with hydraulic ramps)
  • Nooteboom OSDS-58-04V(EB) (4-axle-semi-trailer with hydraulic ramps)
  • Nooteboom OSDS-58-04V(EB) (4-axle-semi-trailer with hydraulic ramps)

rent- or sales price on demand by contact person:

Olga Dunker

00 49 (0) 231 72 08 40 -12

olga.dunker@heavytrailer.de

Ralf Meissner

00 49 (0) 231 72 08 40 - 13

ralf.meissner@heavytrailer.de

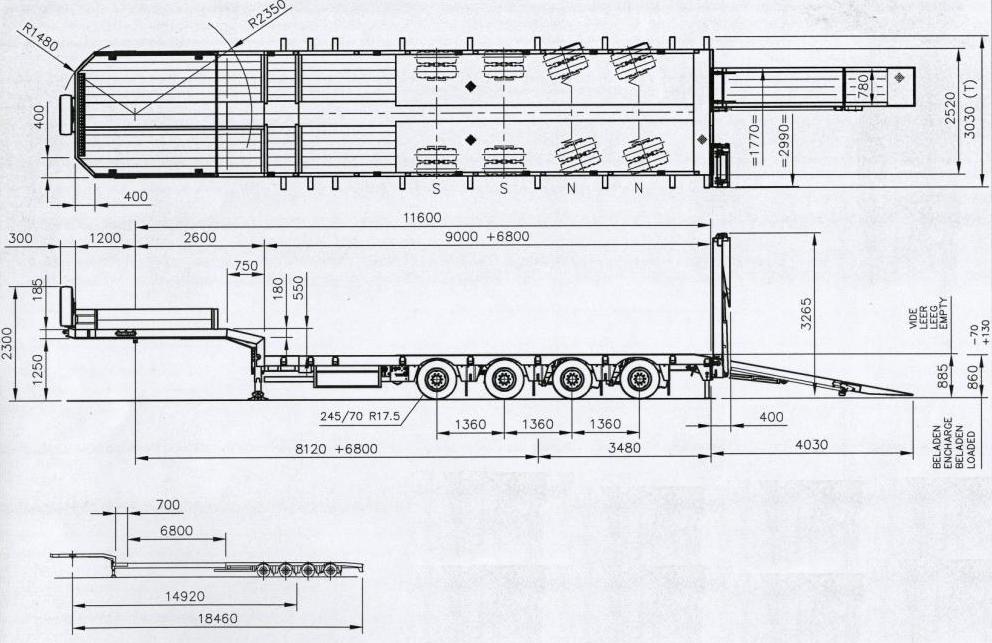

Technical drawing

Technische Zeichnung

Frame:

  • steel frame construction with telescopic central frame elements
  • side frame as a UNP profile
  • telescopic locks pneumatically
  • chamfered back of the increased load bed
  • chamfered rear with U-profile for aluminum ramps

Axles:

  • SAF-axles with compact hubs and automatic brake adjusters (AGS). The last two trailing axles are self steered, while reverse mode axles can be locked by manual or electric operation.
  • air suspension with lifting and lowering valve (200 mm total stroke)
  • tyres: (245/70 R 17.5), brand: Michelin

Brake system:

  • 2-line EBS electronic brake worked on pressure air with automatic load-dependent brake force control
  • ABS
  • Roll-over Stability Support (RSS)
  • spring controlled parking brake.

Floor:

  • 28 mm hardwood floor on the gooseneck
  • 40 mm hardwood floor in the back
  • axle area fitted with checker plates 6/8

Lighting:

  • ISO 24 volt (two 7 pin sockets ISO N + S) lighting system with rectangular 5-chamber lights
  • twice rear lights
  • license plate light
  • ECE marking plates
  • LED side lights
  • holder for warning light.

Additional equipment:

  • 2" king pin, exchangeable
  • locking the telescopic main frame elements with air pressure control
  • storrage 1.25 x 2.5 m transversely under cargo area, with covers on the left and right, for 2 aluminum ramps (Annex)
  • side post storrage behind the front wall/bulkhead
  • side post bags, all around 1,350 mm in the side profile of the load bed
  • 6 pairs of retractable lashing points
  • pull-out extensions
  • folding stands
  • plug-in steel front wall, 400 mm high
  • 3 piece of plug-in side panels, 400 mm high (anodized)
  • 4 piecesof  wheel chocks
  • 2 pairs of warning plates with lights
  • 15 pin socket
  • spare wheel
  • lashing hooks (20 mm) below the side profile (approximately every 1,000 mm)
  • EC side guards at the side profile
  • 2 piece of double folding ramps (4,000 x 780 mm) of steel with hardwood floor at the rear, electro-hydraulically operated. The ramps are removable
