Meusburger 3-axle-semi-trailer

Meusburger 3-axle-semi-trailer Specifications
Total weight ca. 48.000 kg
Payload 80km/h ca. 38.000 kg
Empty load ca. 10.000 kg
telescopiec / extendable ca. 7.000 mm
Gooseneck length ---
Vehicle width ca. 2.550 mm
Coupling height ca. 1.150 mm
Loading height ca. 880 mm
Loading length ca. 9.020 mm
Manufacturer Meusburger
Type semi trailer
Axles 3
Steering Self steering

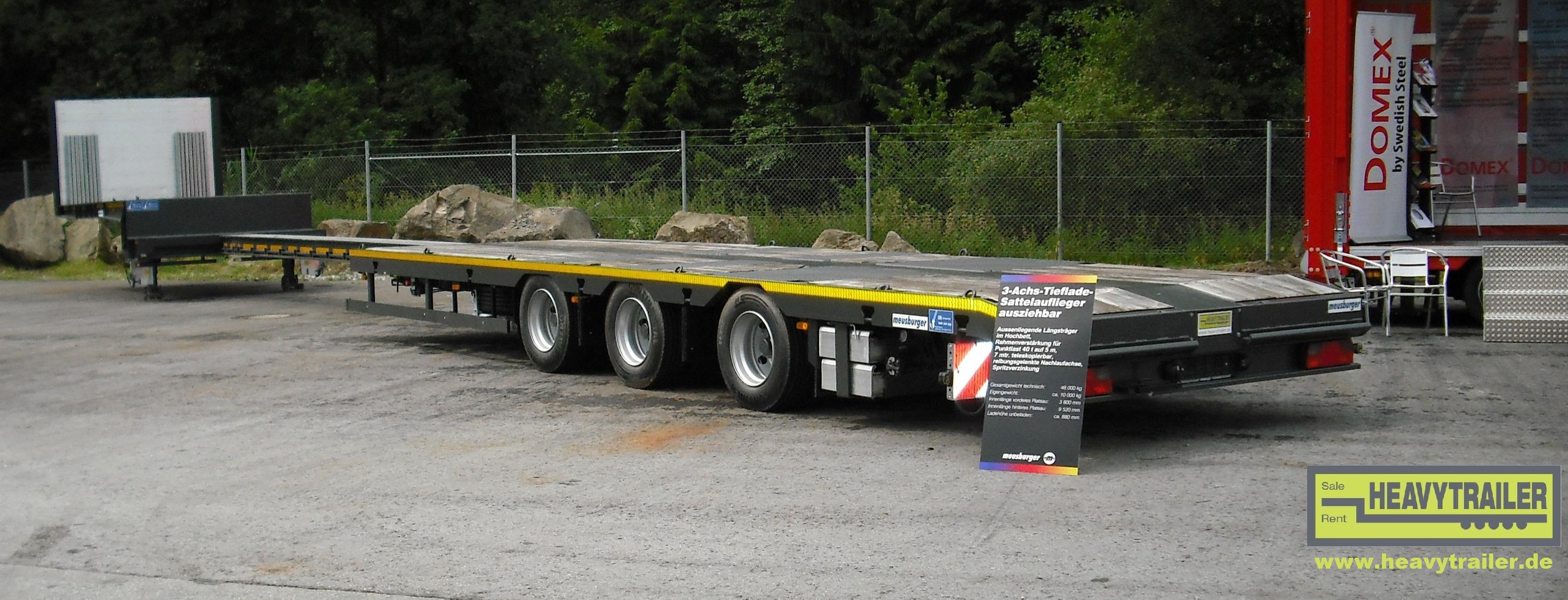

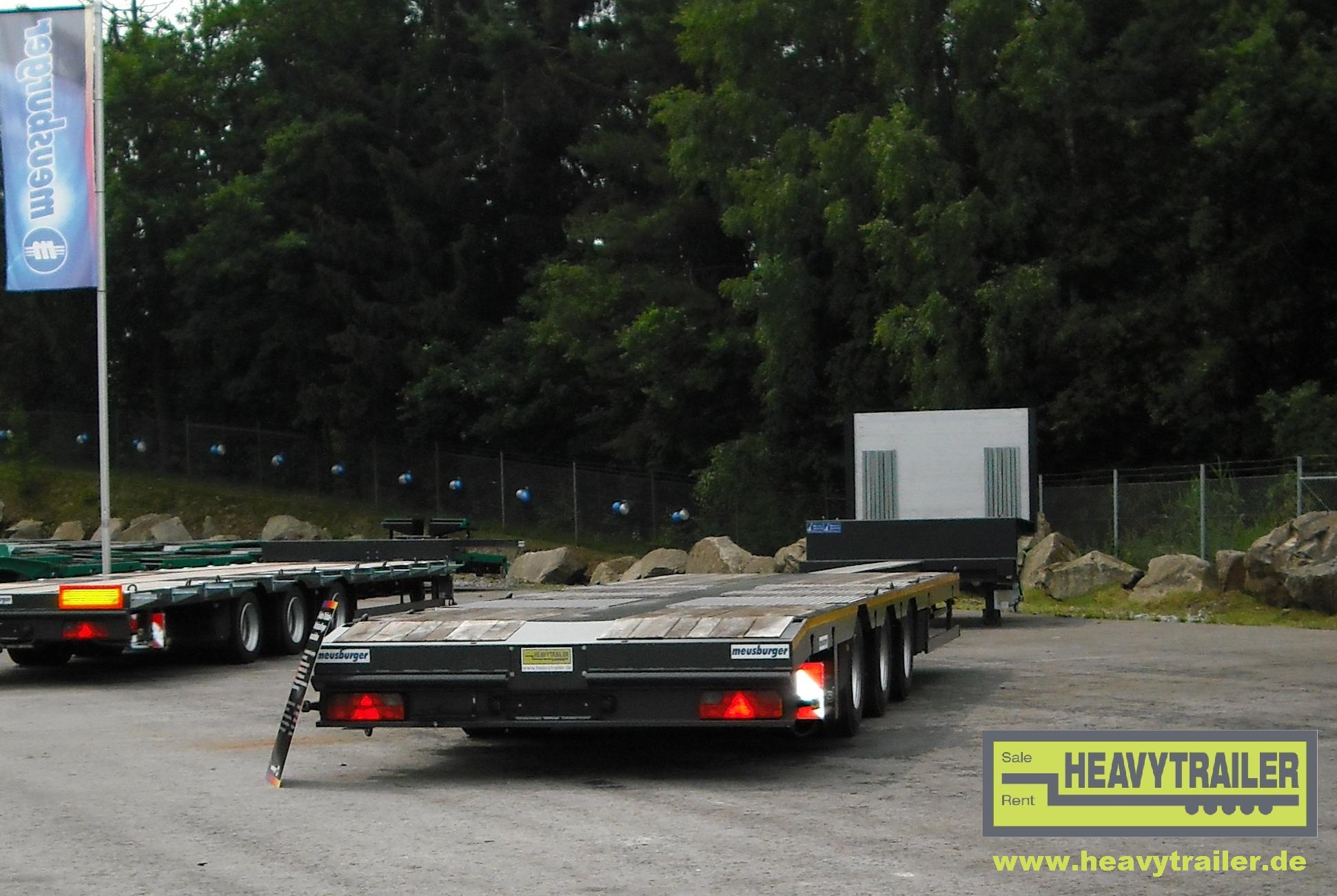

  • Meusburger 3-axle-semi-trailer
  • Meusburger 3-axle-semi-trailer
  • Meusburger 3-axle-semi-trailer

rent- or sales price on demand by contact person:

Olga Dunker

00 49 (0) 231 72 08 40 -12

olga.dunker@heavytrailer.de

Ralf Meissner

00 49 (0) 231 72 08 40 - 13

ralf.meissner@heavytrailer.de

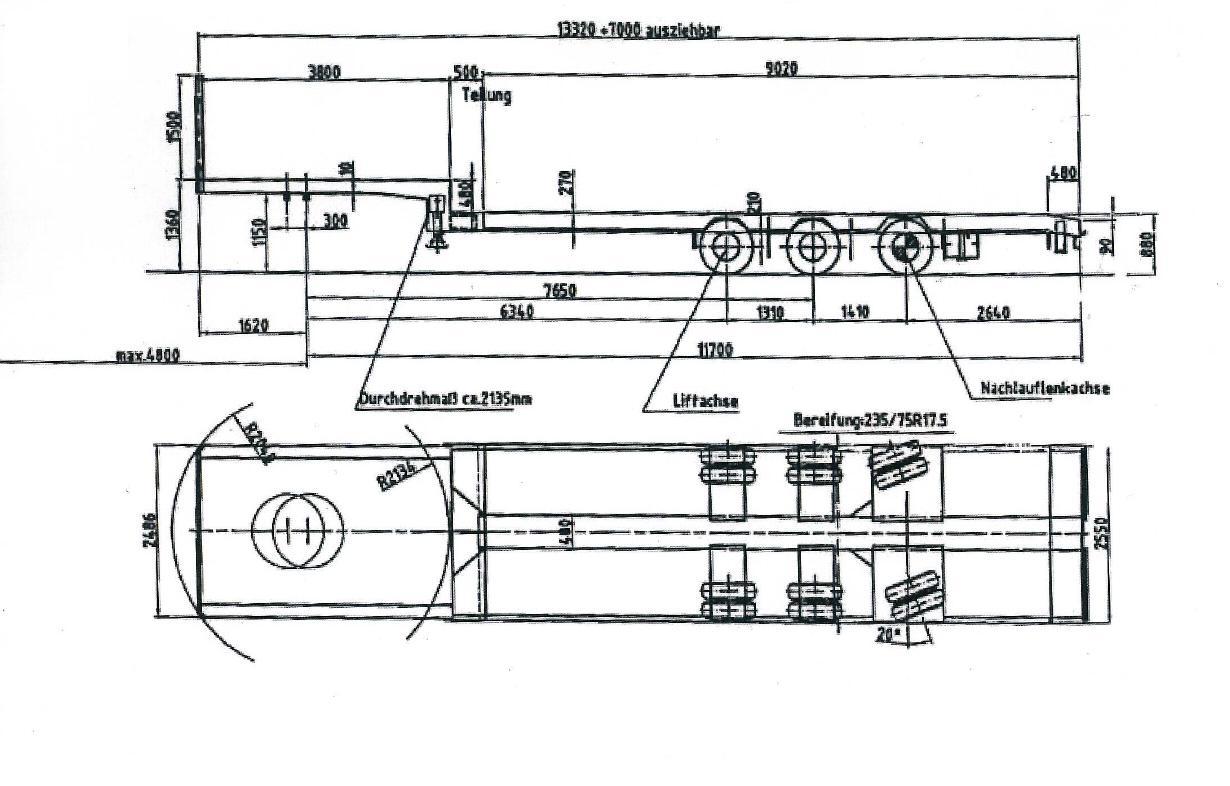

Technical drawing

Technische Zeichnung

Frame:

  • steel frame construction, lightweight
  • chassis with extendable central part
  • pneumatic telescope locking positions, every 500 mm

Axles:

  • 3 x 10.000 kg BPW axles. Third axle self steering.
  • air suspension, lifting and lowering mechanism with total about 200 mm.
  • 13 tyres (235/75 R 17.5)

Brake system:

  • load controlled two line braking system
  • Wabco EBS 4S 3M brake VCS
  • spring controlled parking brake, acting on two axles

Floor:

  • 50 mm hardwood floor
  • in the axle area fitted with checker plates

Illumination:

  • 24-volt lighting system
  • 2 pieces of 7-chamber lights
  • 2 pieces of 7-pin sockets
  • 15-pin socket
  • 3-pin socket at the rear
  • 2 pairs of 3-pin socket for warning plates
  • side marker lights
  • corner marker lights
  • license plate light
  • position lights

Paint:

  • chassis MB 7350 DB (nova gray)
  • silver rims
  • bulkhead MB 7350 DB (nova gray)

Additional equipment:

  • 8 pairs of side post positions in the outer frame
  • 10 pairs of lashing rings, 8 to
  • 2 pairs of lashing rings, 4 to, on the side of the outer frame from the increased load bed
  • 6 pairs of lashing points in the side of the outer frame
  • storage compartment for side posts
  • storage compartment for ramps
  • PVC tool box
  • 2 pairs of warning plates with lights
  • 4 pieces of wheel chocks
  • 2 pieces of ECE plates
  • 1 piece of front wall , high:1,500 mm, hollow aluminum profile
  • side guards
  • display panels for high/low of the suspension and for the weight of the load
