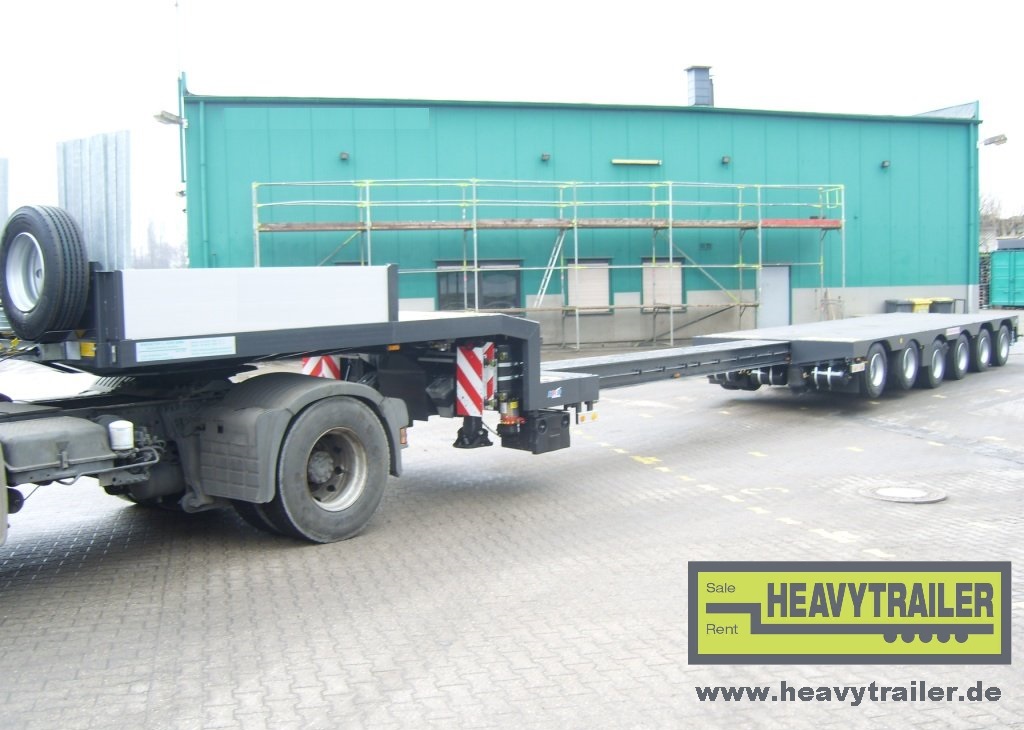

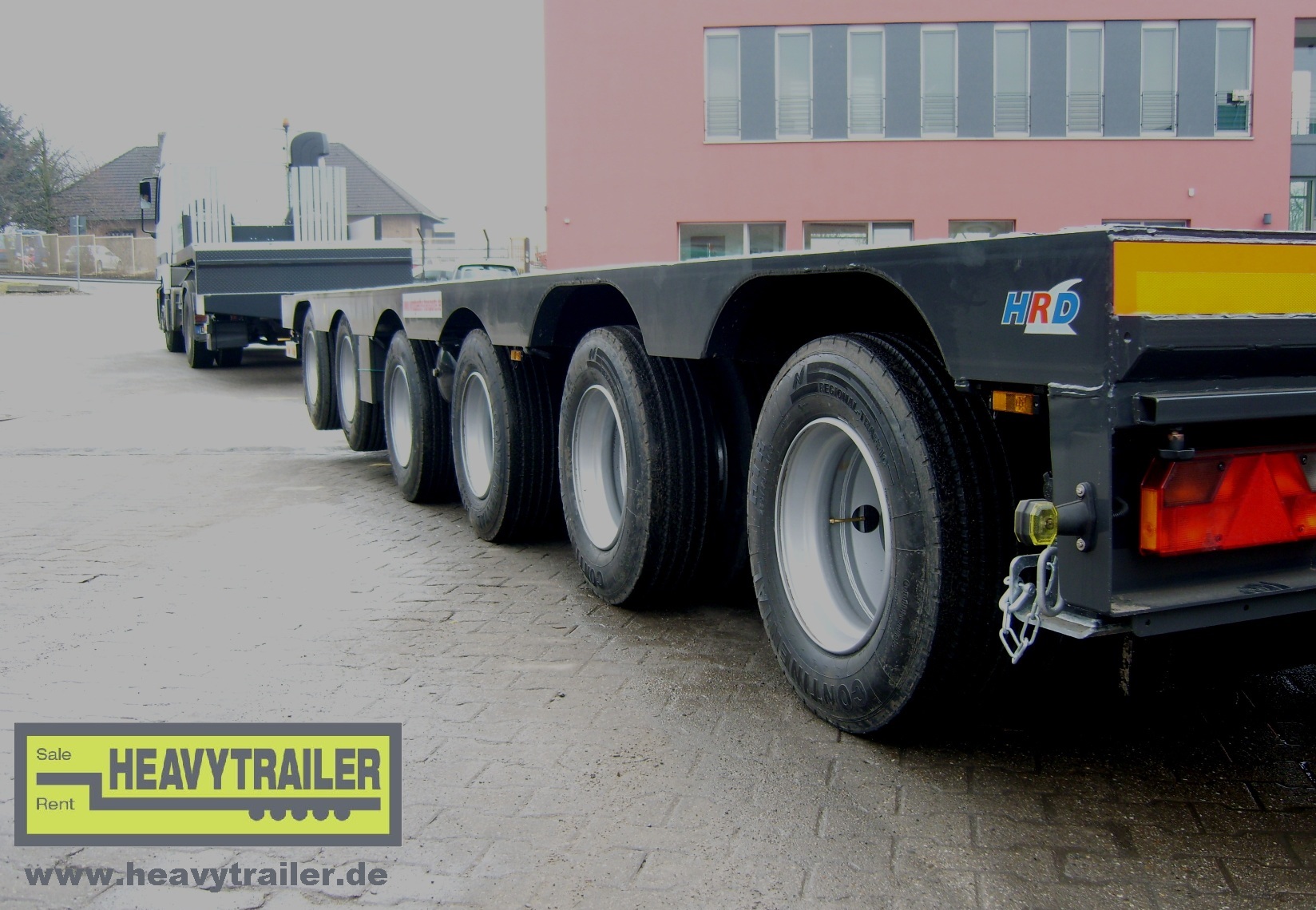

HRD 6-axle-semi-trailer

HRD 6-axle-semi-trailer, telescopic Specifications
Total weight ca. 84.000 kg
Payload 80km/h ca. 68.800 kg
Empty load ca. 15.200 kg
telescopiec / extendable ca. 6.000 mm
Gooseneck length ca. 3.700 mm
Vehicle width ca. 2.550 mm
Coupling height ca. 1.200 mm
Loading height ca. 900 mm
Loading length ca. 9.000 mm
Manufacturer HRD
Type semi trailer
Axles 6
Steering Self steering
  • HRD 6-axle-semi-trailer
  • HRD 6-axle-semi-trailer
  • HRD 6-axle-semi-trailer

rent- or sales price on demand by contact person:

Olga Dunker

00 49 (0) 231 72 08 40 -12

olga.dunker@heavytrailer.de

Ralf Meissner

00 49 (0) 231 72 08 40 - 13

ralf.meissner@heavytrailer.de

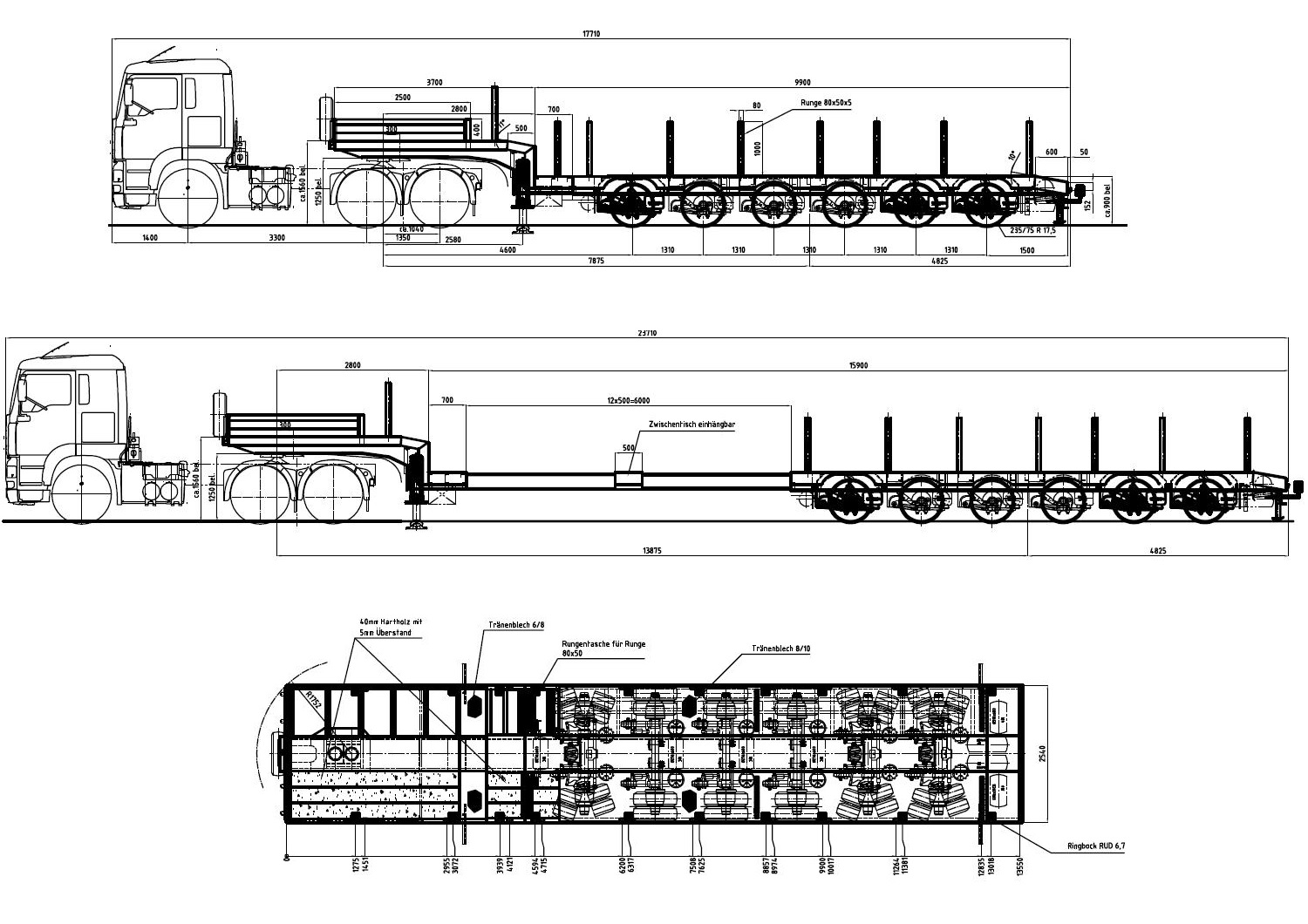

Technical drawing

Technische Zeichnung

Frame:

  • steel frame construction with telescopic central part
  • side frame as a UNP profile
  • chamfered rear with u-profile for aluminum ramps
  • pneumatic locking devices, in increments of 500 mm
  • chamfered back of the increased load bed and the rear

Axles:

  • 6 x 10.000 kg SAF axles with drum brakes (17.5 "). Three axles are self steering, in reverse driving automatically locking and if necessary manually locked. First and 2nd axle liftable.
  • air suspension with lifting and lowering valve
  • 17 tyres (235/75 R 17.5), brand: Continental.

Brake system:

  • load controlled dual line braking system
  • Wabco EBS 4S 3M VCS 2x60L brake / air 1x80L (screwed)
  • spring controlled parking brake, acting on two axles

Floor:

  • 28 mm hardwood floor
  • in the axle area fitted with checker plate 6/8

Illumination:

  • 24-volt lighting system according to RL 76/756/EEC
  • 2 pieces of 7-chamber lights
  • 2 pieces of 7-pin sockets
  • 15-pin socket
  • 3-pin socket at the rear
  • 2 pairs of 3-pin socket for warning plates
  • side marker lights
  • corner marker lights
  • license plate light
  • position lights

Paintwork:

  • chassis MB 7350 DB (nova gray)
  • silver rims
  • sides exoliert

Additional equipment:

  • 9 pairs of side post positions in the outer frame, 80 x 50 mm
  • 3 rows of side post bags, transverse to the direction of travel
  • 2 pairs of lashing rings 5 at the increased load bed
  • 6 pairs of 5 to lashing rings in the low bed
  • 10 pairs of lashing points in the outer frame
  • lockings for 2x20 ft. container and 1x40 ft in the low bed
  • 2 pairs of warning plates with lights
  • second king pin position
  • 4 pieces of wheel chocks
  • 3 piece of plug-in side wall panels, 400 mm high (anodized)
  • 1 plug-in steel front wall ,400 mm high
  • toolbox
  • aluminum side guards
