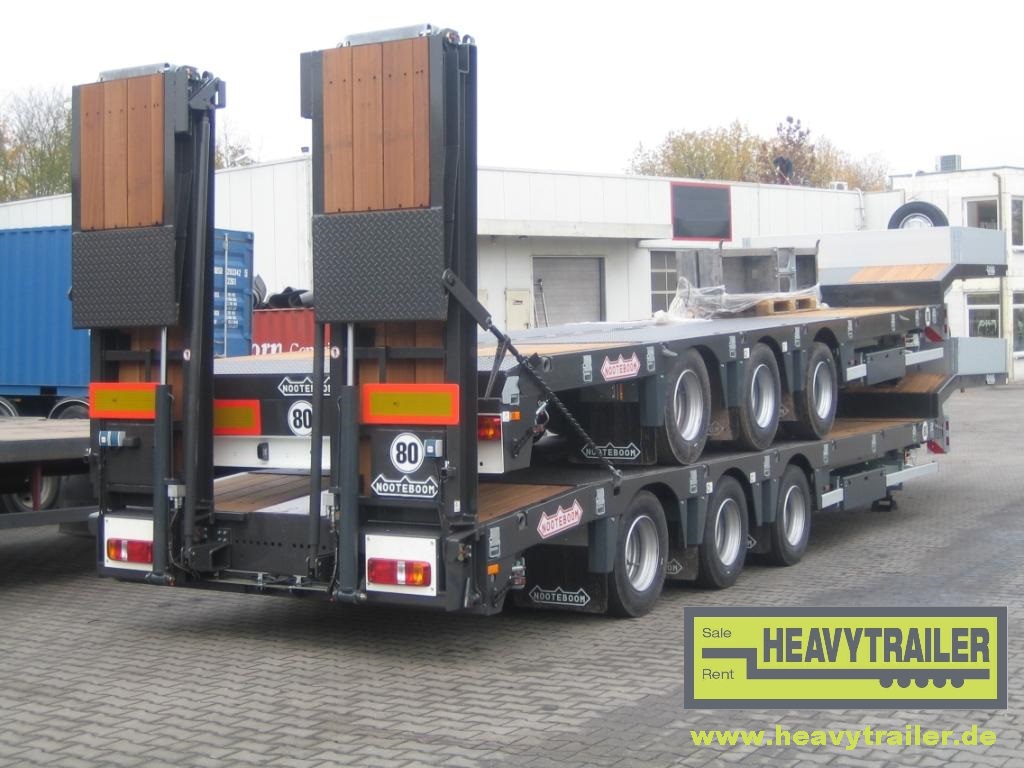

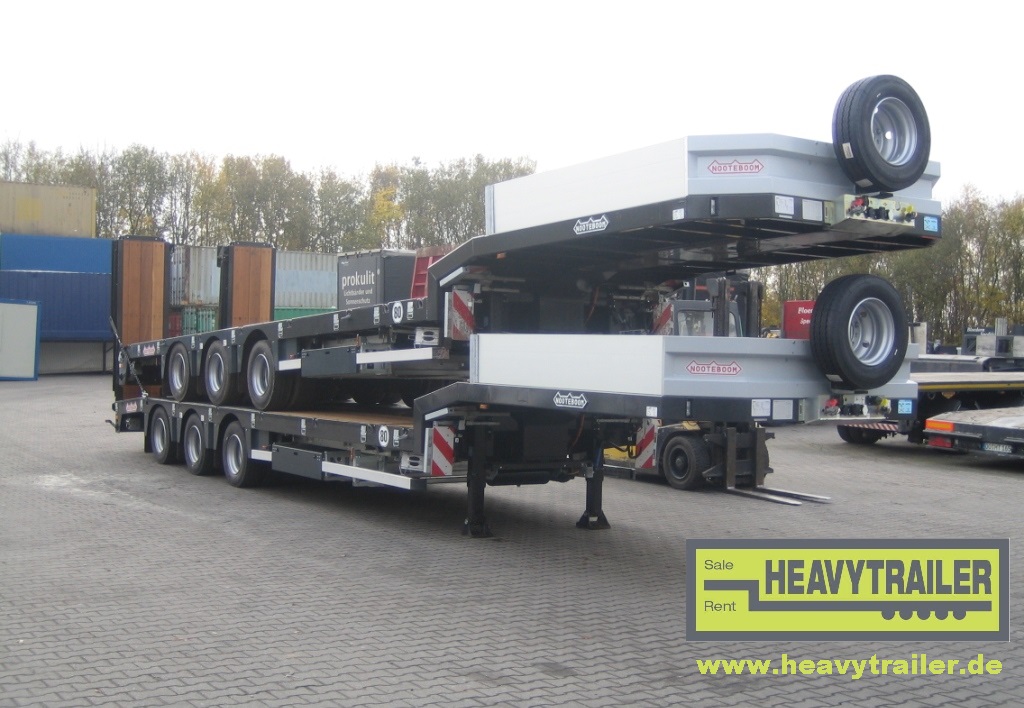

Nooteboom OSDS-48-03V(EB)(3-axle-semi-trailer with hydraulic ramps)

Nooteboom OSDS-48-03V(EB)(3-axle-semi-trailer with hydraulic ramps), telescopic Specifications
Total weight ca. 48.000 kg
Payload 80km/h ca. 37.700 kg
Empty load ca. 10.300 kg
telescopiec / extendable ca. 5.936 mm
Gooseneck length ca. 3.800 mm
Vehicle width ca. 2.520 mm
Coupling height ca. 1.250 mm
Loading height ca. 860 mm
Loading length ca. 9.000 mm
Manufacturer Nooteboom
Type semi trailer
Axles 3
Steering Self steering
  • Nooteboom OSDS-48-03V(EB)(3-axle-semi-trailer with hydraulic ramps)
  • Nooteboom OSDS-48-03V(EB)(3-axle-semi-trailer with hydraulic ramps)
  • Nooteboom OSDS-48-03V(EB)(3-axle-semi-trailer with hydraulic ramps)

rent- or sales price on demand by contact person:

Olga Dunker

00 49 (0) 231 72 08 40 -12

olga.dunker@heavytrailer.de

Ralf Meissner

00 49 (0) 231 72 08 40 - 13

ralf.meissner@heavytrailer.de

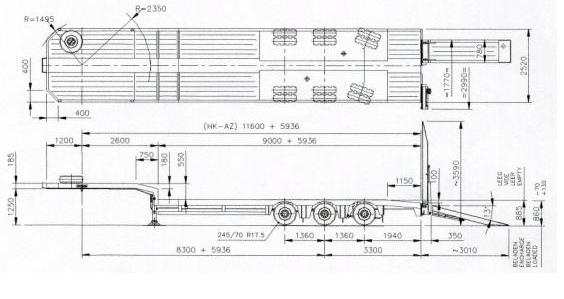

Technical drawing

Technische Zeichnung

Frame:

  • steel frame construction with telescopic central element
  • side frame as a UNP profile
  • Pneumatic telescope locks
  • chamfered back of the increased load bed
  • chamfered rear with u-profile for aluminum ramps

Axes:

  • 3 x 10.000 kg SAF axles with drum brakes (17.5 "). The last trailing axle is steered in reverse mode automatically locking type and, if necessary, manually locked.
  • air suspension with lifting and lowering valve (200 mm total stroke)
  • 13 tyres (245/70 R 17.5).

Brake system:

  • dual-line EBS electronic brake, worked with pressure air
  • automatic load-dependent brake force control
  • ABS
  • rollover stability support (RSS)
  • spring controlled parking brake.

Floor:

  • 28 mm hardwood floor on the gooseneck
  • 40 mm hardwood floor in the load bed
  • in the chassis area fitted with checker plates, 6/8

Illumination:

  • ISO 24 volt (two 7-pin sockets ISO N + S) lighting system with rectangular 5-chamber lights
  • rear light, twice
  • license plate light
  • ECE marking signs
  • LED side lights
  • connection at the rear for warning light

Additional equipment:

  • side post positions in the outer frame, approximately every 1,350 mm
  • side post storage at the back of the bulkhead
  • pull-out extensions
  • embedded lashing points into the floor
  • 2 pairs of warning plates with lights
  • Storage for ramps behind the 3rd axle
  • 4 pieces of wheel chocks
  • 3 pieces of plug-in side panels, 400 mm high (anodized)
  • plug-in steel front panel 400 mm high
  • ramps in double foldable version with 4000 mm length and 780 mm width
  • aluminum side guards
  • 2" king pin, exchangeable
