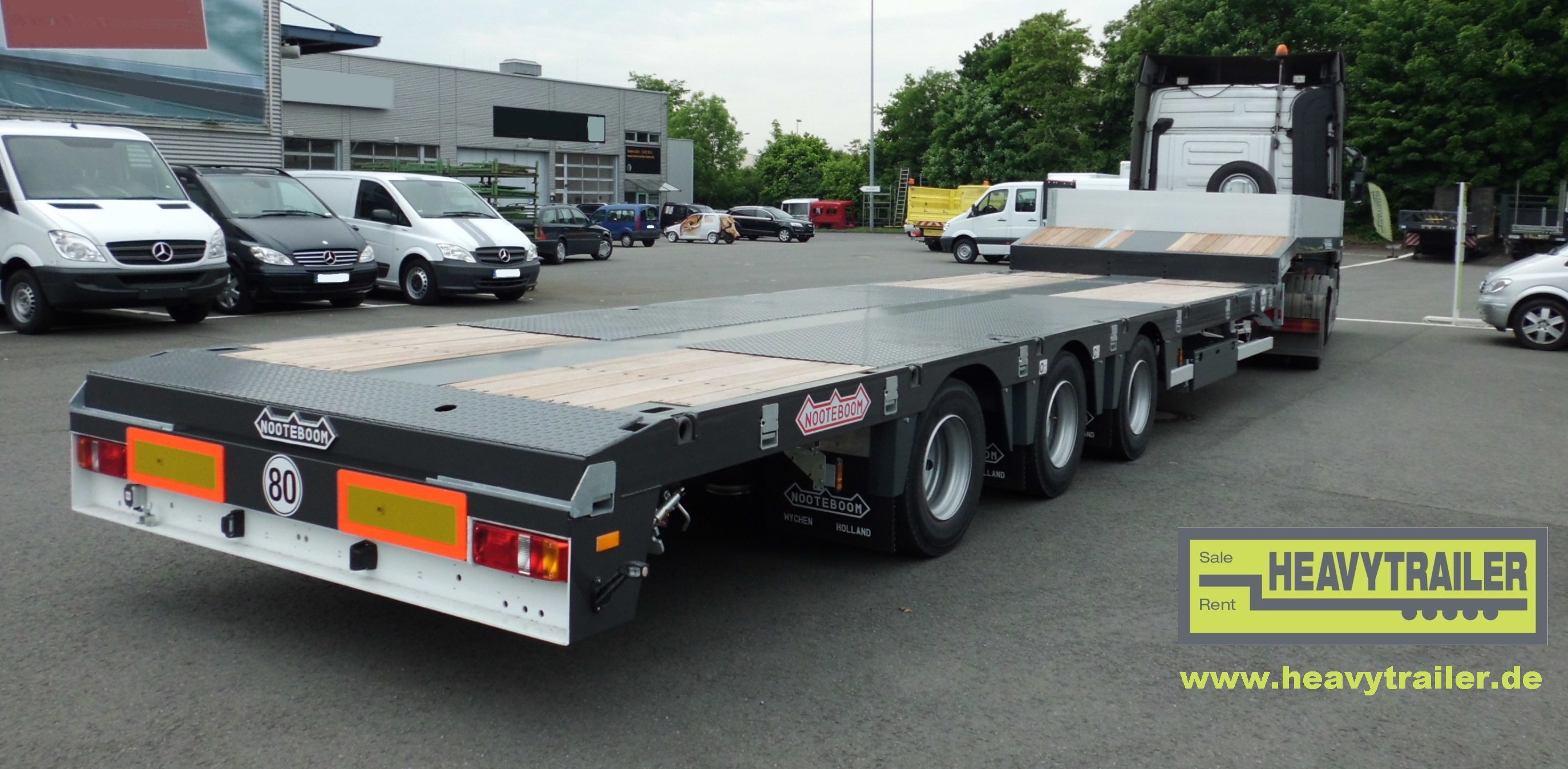

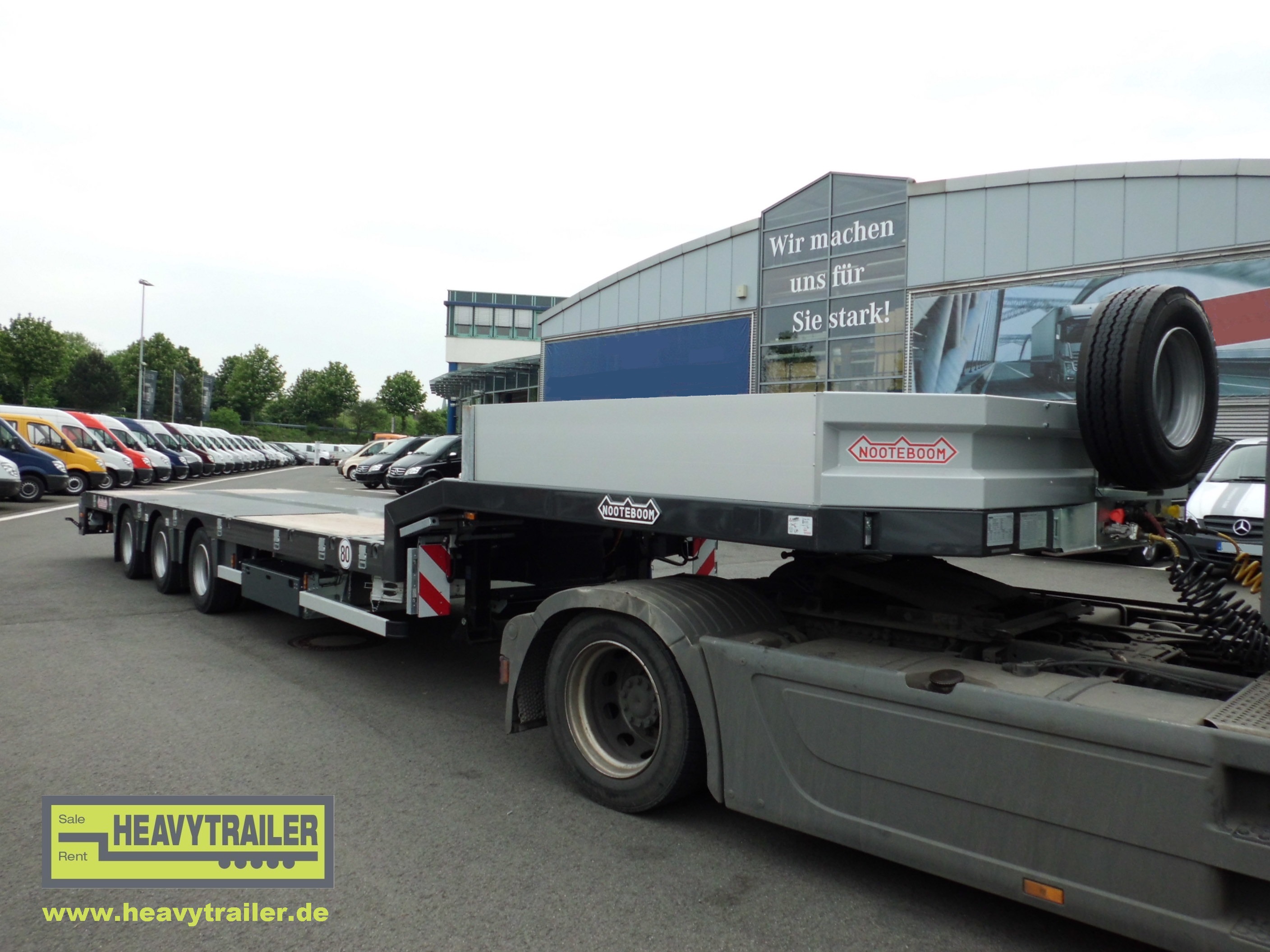

Nooteboom OSDS-48-03V(D)(3-axle-semi-trailer)

Nooteboom OSDS-48-043V (D)(3-axle-semi-trailer), telesopic Specifications
Total weight ca. 48.000 kg
Payload 80km/h ca. 38.500 kg
Empty load ca. 9.500 kg
telescopiec / extendable ca. 6.800 mm
Gooseneck length ca. 3.800 mm
Vehicle width ca. 2.520 mm
Coupling height ca. 1.250 mm
Loading height ca. 860 mm
Loading length ca. 9.000 mm
Manufacturer Nooteboom
Type semi trailer
Axles 3
Steering Self steering
  • Nooteboom OSDS-48-03V(D)(3-axle-semi-trailer)
  • Nooteboom OSDS-48-03V(D)(3-axle-semi-trailer)
  • Nooteboom OSDS-48-03V(D)(3-axle-semi-trailer)
  • Nooteboom OSDS-48-03V(D)(3-axle-semi-trailer)

rent- or sales price on demand by contact person:

Olga Dunker

00 49 (0) 231 72 08 40 -12

olga.dunker@heavytrailer.de

Ralf Meissner

00 49 (0) 231 72 08 40 - 13

ralf.meissner@heavytrailer.de

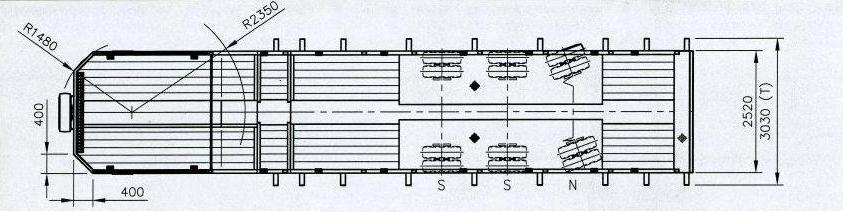

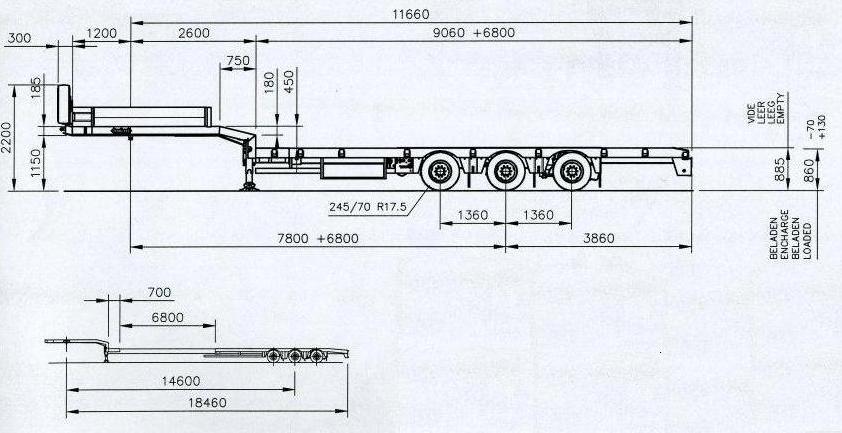

Technical drawing

Technische Zeichnung

Technische Zeichnung

Frame:

  • steel frame construction with telescopic central part
  • side frame as a UNP profile
  • telescoping locks pneumatically
  • chamfered back of the increased load bed
  • chamfered rear with u-profile for aluminum ramps

Axles:

  • 3 x 10.000 kg SAF axles with drum brakes (17.5 "). The last trailing axle is self steered, in reverse mode automatically lockingly and, if necessary, manually locked.
  • air suspension with lifting and lowering valve (200 mm total stroke)
  • 13 tyres (245/70 R 17.5).

Brake system:

  • 2 line EBS electronic brake, working with pressure air
  • automatic load-dependent brake force control
  • ABS
  • Roll-over Stability Support (RSS)
  • spring parking brake.

Floor:

  • 28 mm hardwood floor on the gooseneck
  • 40 mm hardwood floor in the rear area
  • in axle area fitted with checker plates  6/8

Illumination:

  • ISO 24 volt (two 7-pin sockets ISO N + S) lighting system with rectangular 5-chamber lights
  • twice back lights
  • license plate light
  • ECE marking signs
  • LED side lights and holder for warning light

Paintwork:

  • chassis MB 7350 DB (nova gray)
  • silver rims
  • sides in anodized finish

Additional equipment:

  • side post positions in the outer frame, approximately every 1,350 mm
  • side post depot on the back side of the bulkhead
  • extendable extensions
  • lashing points integrated into the ground
  • lashing hooks 20 mm below the side profile, all about 1,000 mm
  • 2 pairs of warning plates with lights
  • ramp depot behind the 3rd axle
  • 4 pieces of wheel chocks
  • 3 piece of plug-in side panels, 400 mm high (anodized)
  • plug-in steel front wall, 400 mm high
  • aluminum side guards
  • 2" king pin 2, exchangeable
