HRD 4-axle low bed trailer with wheel recess and extravator pit

HRD 4-axle low bed trailer with wheel recess and extravator pit (telescopic, self steering) Specifications
Total weight 58.000 Kg
Payload 80km/h 46.500 Kg
Empty load 11.500 Kg
telescopiec / extendable 2.800 mm
Gooseneck length 4.000 mm
Vehicle width 2.550 mm
Coupling height 1.120 mm
Loading height 900 mm
Loading length 8.600 mm
Manufacturer HRD
Type semi trailer
Axles 4
Steering Self steering

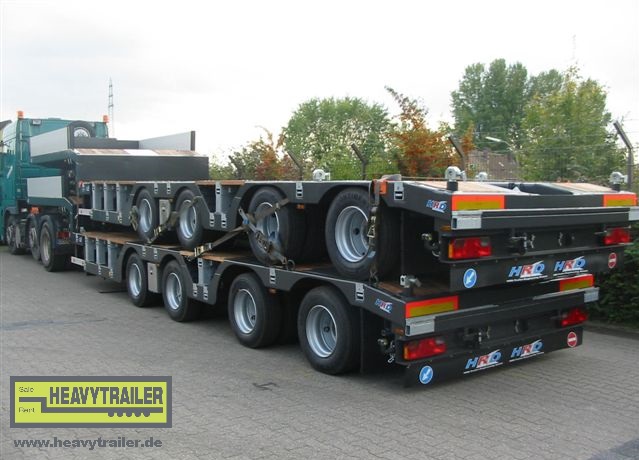

  • HRD 4-axle low bed trailer with wheel recess and extravator pit

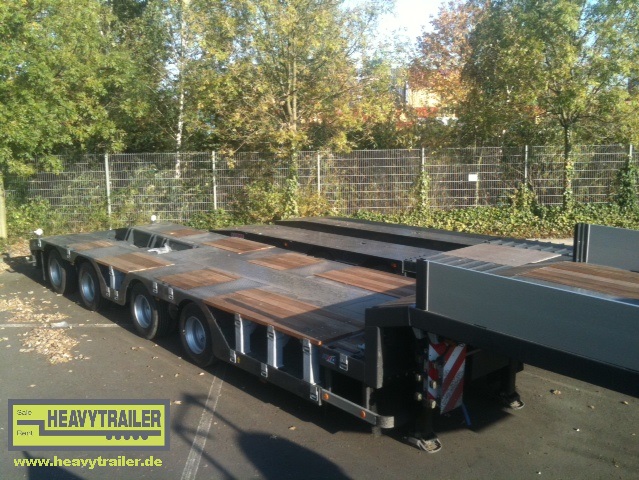

  • HRD 4-axle low bed trailer with wheel recess and extravator pit
  • HRD 4-axle low bed trailer with wheel recess and extravator pit

rent- or sales price on demand by contact person:

Olga Dunker

00 49 (0) 231 72 08 40 -12

olga.dunker@heavytrailer.de

Ralf Meissner

00 49 (0) 231 72 08 40 - 13

ralf.meissner@heavytrailer.de

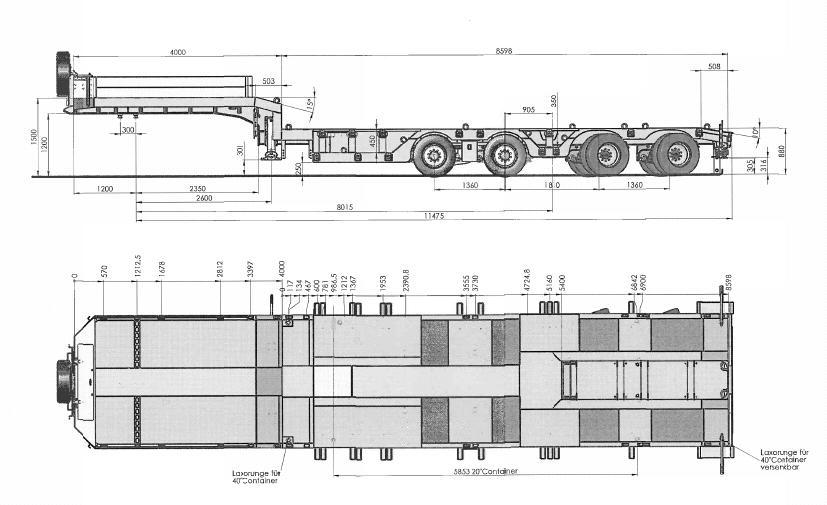

Technical drawing

Technische Zeichnung

Frame:

  • steel frame construction with telescopic central part
  • side frame as a UNP profile
  • telescoping locks, pneumatically
  • chamfered back of the increased load bed and chamfered rear

Axles:

  • 4 x 10.000 kg SAF axles with drum brakes
  • last two trailing axles are self steered
  • first axle as a lift axle
  • in reverse mode automatically lockingly
  • manually locking
  • air suspension with lifting and lowering valve (200 mm total stroke)
  • 17 tyres (235/75 R 17.5)

Brake system:

  • two-line air brake system according to RR EC 71/320
  • automatic brake adjustment
  • automatic load-dependent brake regulation
  • EBS 4S 3M
  • spring controlled parking brake

Illumination:

  • 24-volt lighting system according to RL 76/756/EEC
  • 1 pair of rear lights
  • 2 pieces of sockets (7-pin) DIN ISO 1185 and 3731
  • side marker lights and LED position lights
  • 4 pieces of 3-pin sockets for extension lighting system of the warning plates
  • 3-pin socket at the rear

Floor:

  • hardwood floor on the gooseneck and the loading area
  • in the axle region fitted with checker plates

Additional equipment:

  • 10 pairs of side post bags in the outer frame (2 pairs in the increased load bed, 8 pairs in the low bed)
  • u-profile at the gooseneck
  • 1 pair of prop stands at the rear, galvanized
  • 1 pair of mechanical landing legs (Jost)
  • 10 pairs of lashing points (about 10 tons.)
  • side guards in accordance with regulations
  • 1 pair of wheel chocks at the front wall mounted
  • 1plug-in front panel
  • 3 pieces plug-in aluminum side panels on the increased load bed (400 mm high, anodized)
  • 1 pair of wheel recess (approximately 450 mm deep), coverage for pull in and pull out mode
  • 1 piece of excavator recess (3.200 mm x 220 mm)
  • 5 pairs of compensating blocks (galvanized) for passing over the recess and the front of the bed, fitted with hardwood
  • 4 pairs of container locks from "Laxo"
  • 2 pairs of warning plates
  • 10 pairs of pull out extensions in the outer frame, extendable to 3,000 mm
