HRD 3-axle platform trailer

HRD 3-axle platform trailer Specifications
Total weight ca. 45.000 kg
Payload 80km/h ca. 37.840 kg
Empty load ca. 7.160 kg
telescopiec / extendable
Gooseneck length ---
Vehicle width ca. 2.540 mm
Coupling height ca. 1.150 mm
Loading height ca. 1.350 mm
Loading length ca. 13.600 mm
Manufacturer HRD
Type plateau trailer
Axles 3
Steering Self steering

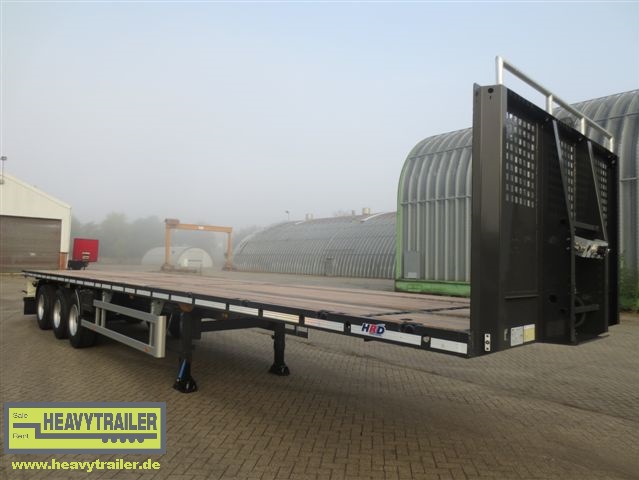

  • HRD 3-axle platform trailer

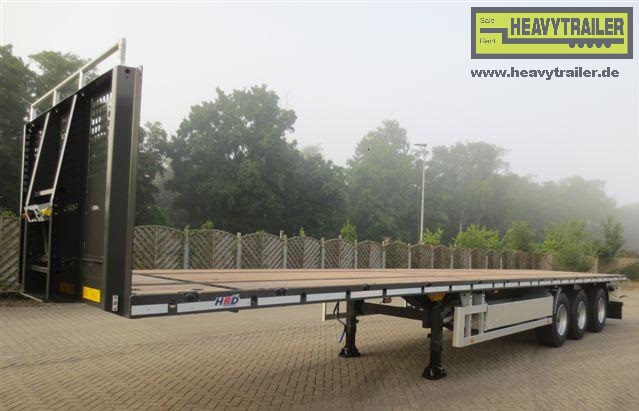

  • HRD 3-axle platform trailer
  • HRD 3-axle platform trailer
  • HRD 3-axle platform trailer

rent- or sales price on demand by contact person:

Olga Dunker

00 49 (0) 231 72 08 40 -12

olga.dunker@heavytrailer.de

Ralf Meissner

00 49 (0) 231 72 08 40 - 13

ralf.meissner@heavytrailer.de

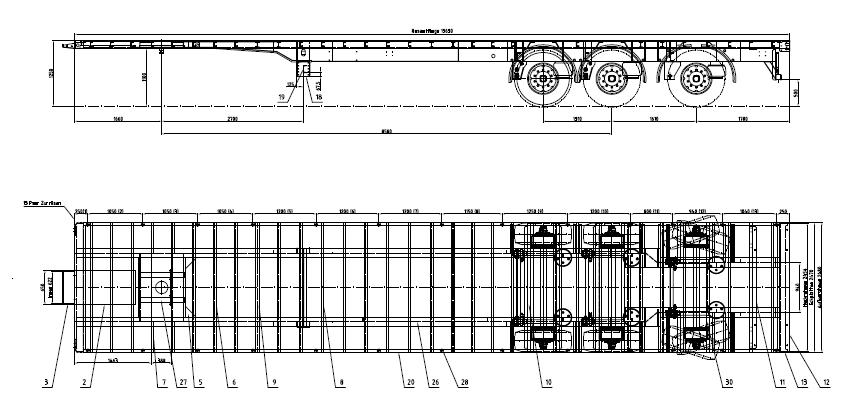

Technical drawing

Technische Zeichnung

Frame:

  • steel frame construction
  • side frame as a UNP profile with lashing positions each 50 mm

Axles

Axles: 3 x 9.000 kg SAF axles. Last axle in self steering design, manual lockable and autamaticly by driving backwards

Suspenssion: air suspension with lifting and lower device

Tyres: 6 tyres and steel rims (385/ 65 R 22.5)



Brakesystem:

  • Wabco EBS 4S 3M E
  • control console leftside in front of the aggregate
  • steering axle locked at 55 km / h about reverse light
  • test connection mounted on control panel

Illumination:

  • 24 volt lighting system according to RL 76/756/EEC
  • 2 pieces of 7-pin sockets DIN ISO 1185 and 3731
  • 7-pin socket at the rear
  • 4 pieces of Hella rear lights (round)
  • 2 pieces of Hella loading lamps
  • 10 pieces of Hella side marker lights
  • 2 pieces of Hella front position lights
  • 2 pieces of rear position lights
  • 2 pieces of license plate lights
  • 4 pieces of 3-pin sockets for extension lighting
  • 3-pin socket at the rear for warning light

Floor:

  • 28 mm hardwood floor, laid lengthwise between galvanized omega profiles

Paintwork:

  • chassis novagrau
  • silver rims
  • side walls novagrau

Additional equipment:

  • 8 pairs of sidepost positions in the side frame
  • 4 cross rows of side post pocket
  • 13 pairs of foldable lashing rings in the side frame (50KN )
  • 1 piece of spare wheel holder (for 1 piece of spare wheel)
  • 2 pieces of wheel chocks with holder
  • Container lockings for 2 x 20“

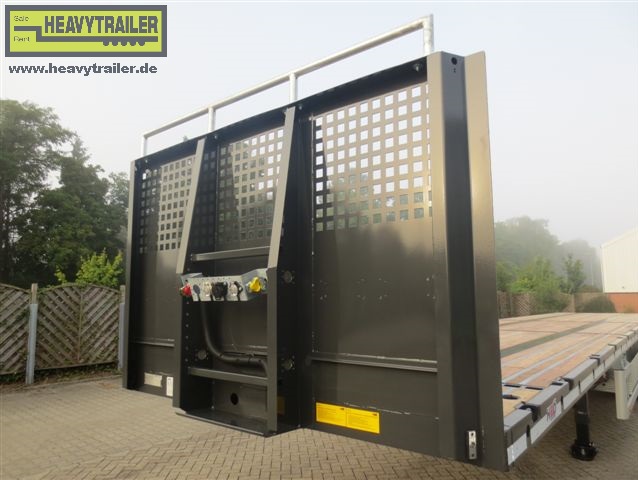

  • 1 piece of removeable bulkhead, (ca. 1.200 mm high)
  • Storrage box under the loading floor
  • Aluminum underrun guard
  • 2" king pin, removeable
