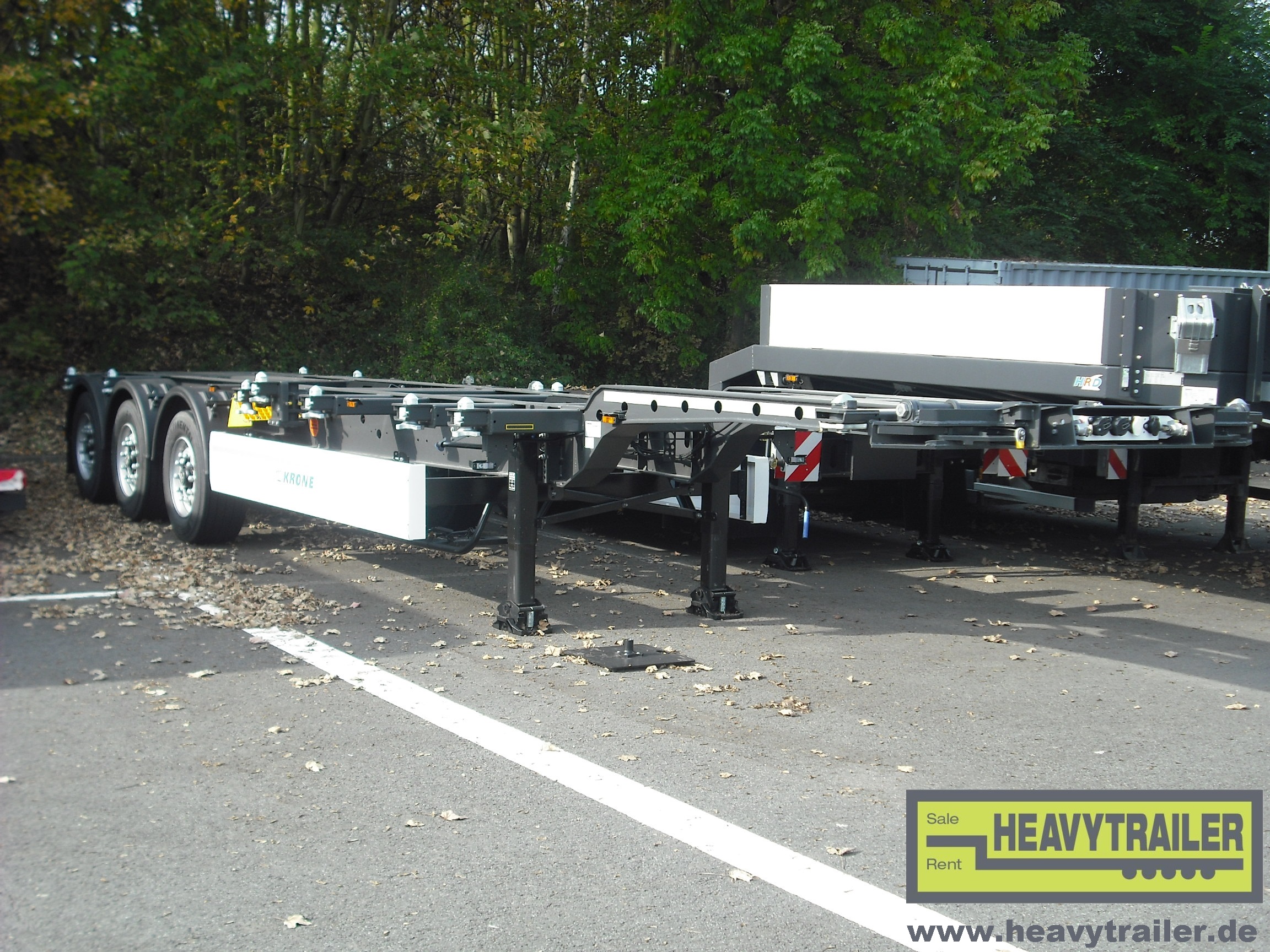

Krone - Box Liner TU5

Krone - Box Liner TU5 Specifications
Total weight ca. 41.000 kg
Payload 80km/h ca. 35.500 kg
Empty load ca. 5.500 kg
telescopiec / extendable ca. 1.833 mm
Gooseneck length
Vehicle width ca. 2.550 mm
Coupling height ca. 1.120 mm
Loading height ---
Loading length ca. 10.932 mm
Manufacturer Krone
Type containerchassis
Axles 3
Steering
  • Krone - Box Liner TU5
  • Krone - Box Liner TU5
  • Krone - Box Liner TU5

rent- or sales price on demand by contact person:

Olga Dunker

00 49 (0) 231 72 08 40 -12

olga.dunker@heavytrailer.de

Ralf Meissner

00 49 (0) 231 72 08 40 - 13

ralf.meissner@heavytrailer.de

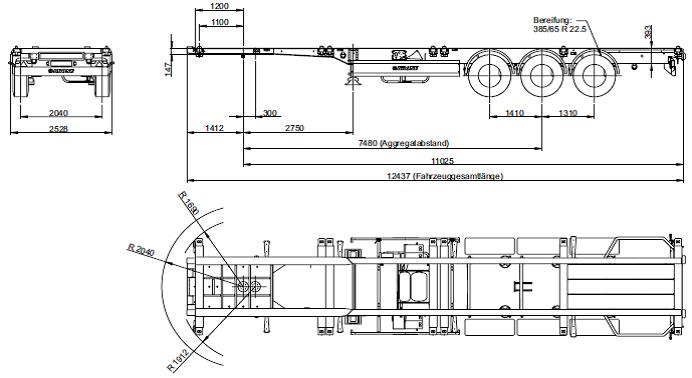

Technical drawing

Technische Zeichnung

Chassis:

  • 2" king pin, exchangeable
  • double-T-longitudinal beams with welded crossmembers
  • side guards
  • rear guards
  • checker plate at the rear
  • landing legs
  • twist lock for following container:
    • 1x 40ft-container with tunnel
    • 1x 45ft-container with tunnel
    • 2x 20ft-container
    • 1x 20ft-container
    • 1x 30ft-container

Axle and tyres:

  • BPW-axle, per 9.000 kg
  • air suspension and disc brakes
  • 385/55 R 22,5

Brake system:

  • WABCO (EG 71/320/EWG ff)
  • spring controlled parking brake
  • EBS with RSS

Light:

  • 24-Volt
  • 2 x 7-pin socket
  • 15-pin socket
  • side marker lights
  • position lights
  • holder for warning light

Paintwork:

  • chassis: novagrau
  • wheel rims: silver
